LS-PL24-M72W-CCT-EM

In Stock
#LED-10475223
USD$97.96/ Each

Description

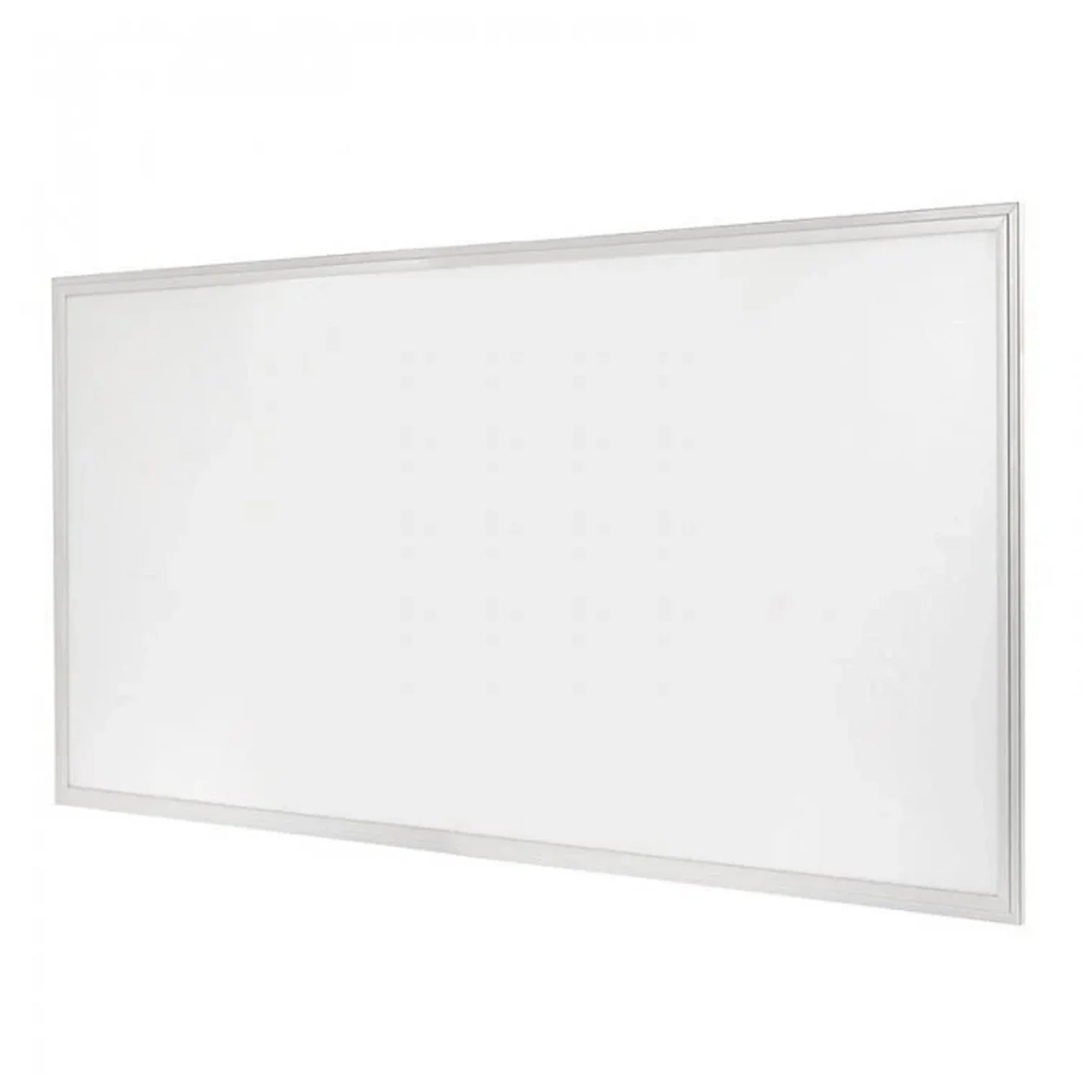

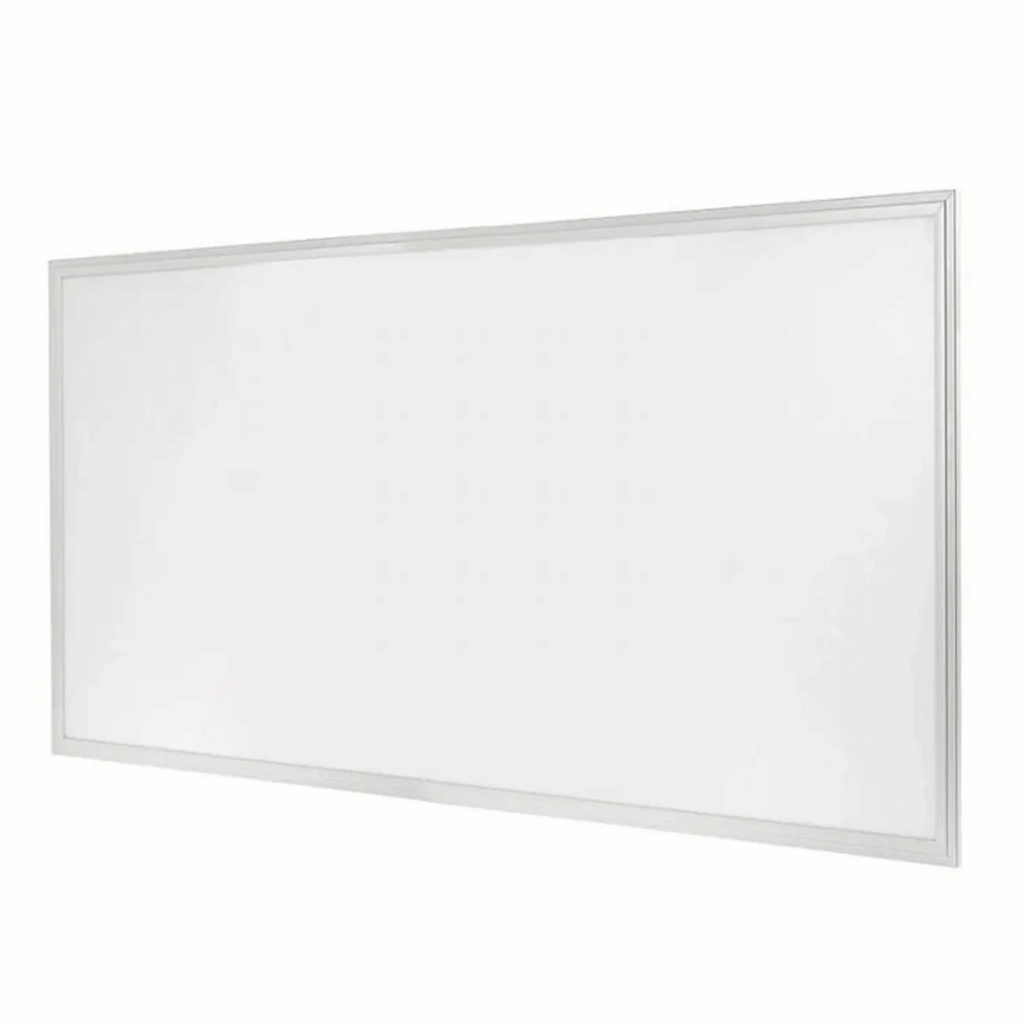

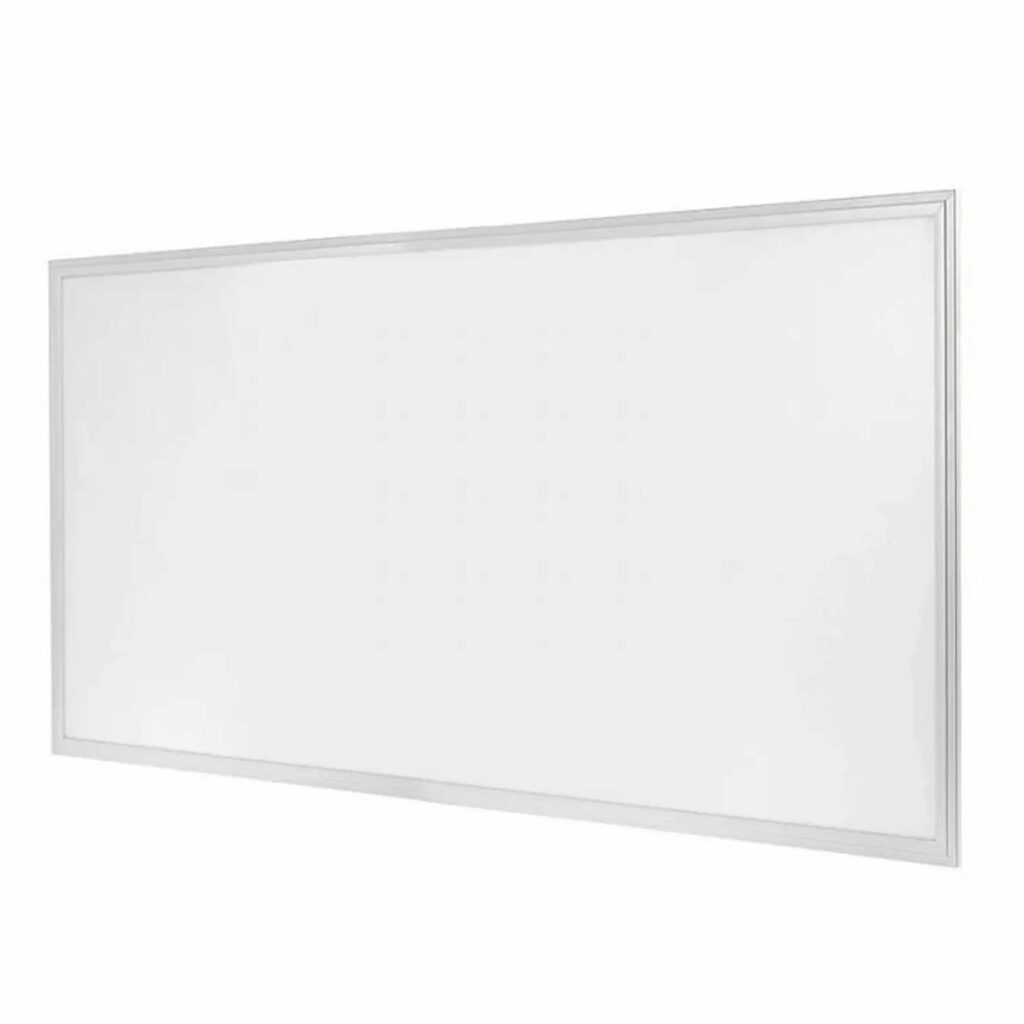

LS-PL24-M72W-CCT – 2x4 Backlit LED Panel, Wattage & CCT Selectable

Power: 30W / 40W / 50W / 60W / 72W (Selectable)
Voltage: AC120-277V
CCT Options: 3500K / 4000K / 5000K / 5700K / 6500K (Selectable)
Packaging: 4PCS/CTN


Product Description:
The LS-PL24-M72W-CCT is a high-performance 2x4 backlit LED panel with wattage and color temperature tunability, offering unmatched flexibility for commercial and professional spaces. With selectable power levels from 30W to 72W and a broad spectrum of color temperatures from 3500K to 6500K, it allows users to customize both brightness and ambiance to suit any environment.

Engineered with backlit technology for consistent, uniform light distribution and reduced glare, this panel ensures superior visual comfort and energy efficiency. Its durable construction and slim design make it ideal for both retrofit and new installations.


Applications:

  • Corporate Offices – Adjustable lighting to enhance comfort and productivity

  • Educational Facilities – Tunable settings for classrooms, libraries, and study halls

  • Hospitals & Clinics – Clear, uniform lighting for healthcare environments

  • Retail Stores & Showrooms – Create flexible atmospheres to highlight products

  • Commercial Buildings – Reliable and efficient solution for large-scale projects

Product Specifications

Model Number
LED-10475223
Energy Used
30W/40W/50W/60W/72W
HID Equivalent
36-110W MH/HPS
Line Voltage
120-277V
CRI
>80
Color Temperature (Kelvin)
3500K/4000K/5000K/5700K/6500K
Lowest Color Temperature (Kelvin)
3500K
Highest Color Temperature (Kelvin)
6500K
Brightness (Lumens)
3900/5200/6500/7800/9360
Average Rated Life (hr)
+ 50,000
Operating Temperature (°F)
-13 to 113
Bulb Type Supplied
LED
Finish
White painted
Housing
Aluminum heatsink and high transmission PC cover
Mounting
Suspended Ceiling Mounting/ Optional Frame for Flush Mounting
Manufacturer Warranty
5 years
Wet Location
NA
Dimmable
0-10V
Color Selectable
Yes
Wattage Selectable
Yes
DLC Listing
Yes
