CEB-80W-120V-50K

In Stock
#LED-10517023
USD$464.65/ Each

Description

CEB-80W-120V-50K

Voltage: 120V | Color Temperature: 5000K | Lumen Output: Approx. 10,400 lm
Class I, Division II | IP66 Rated

Product Description:

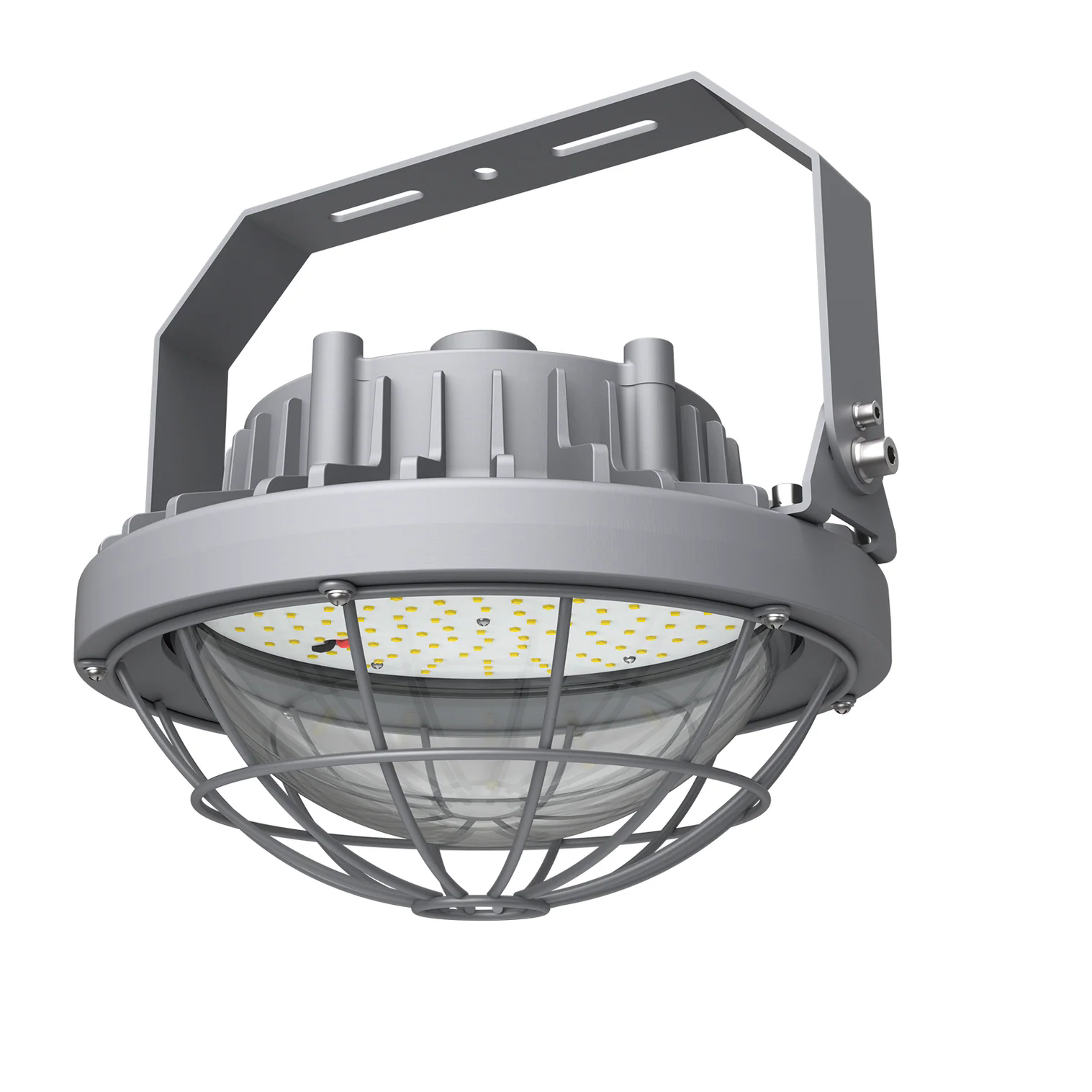

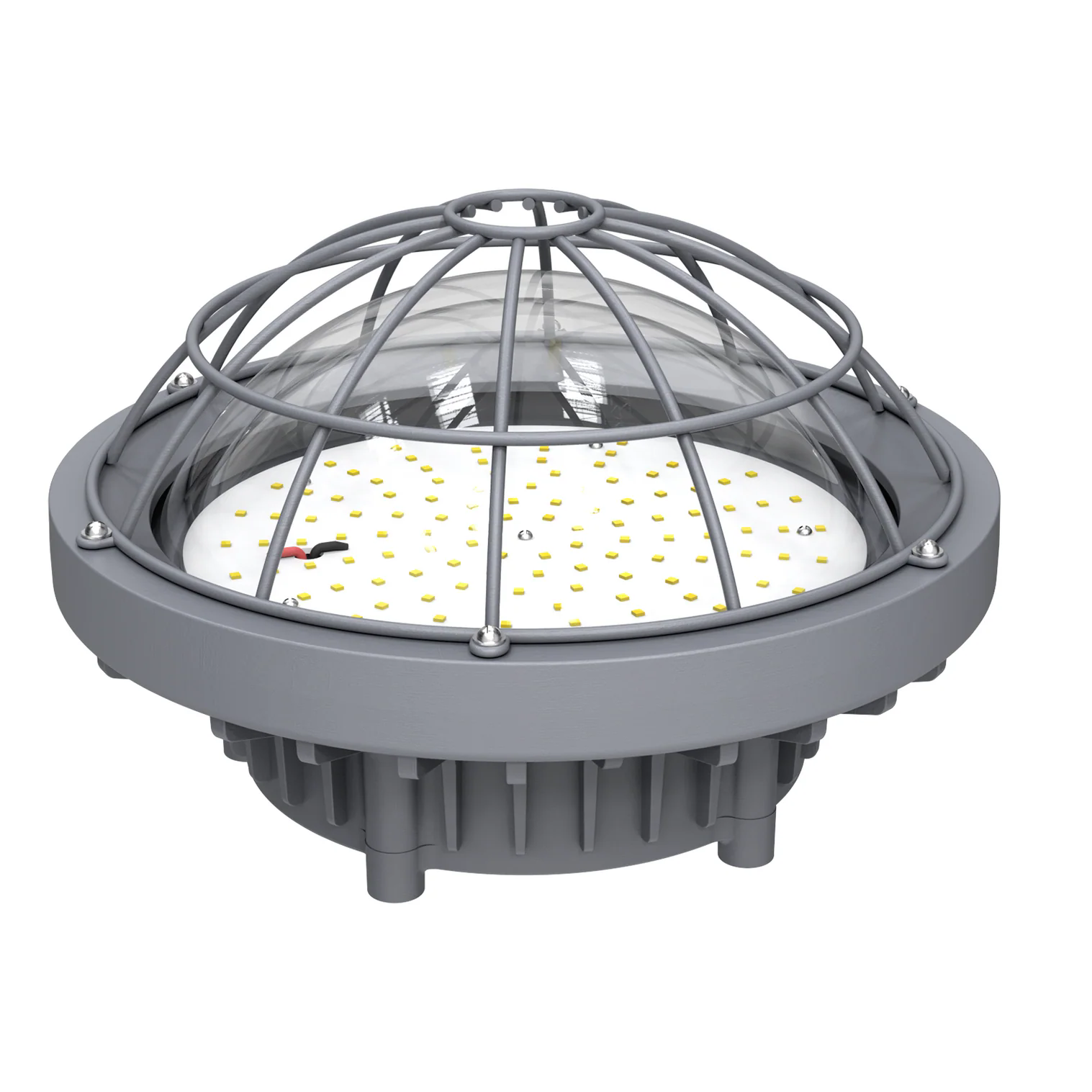

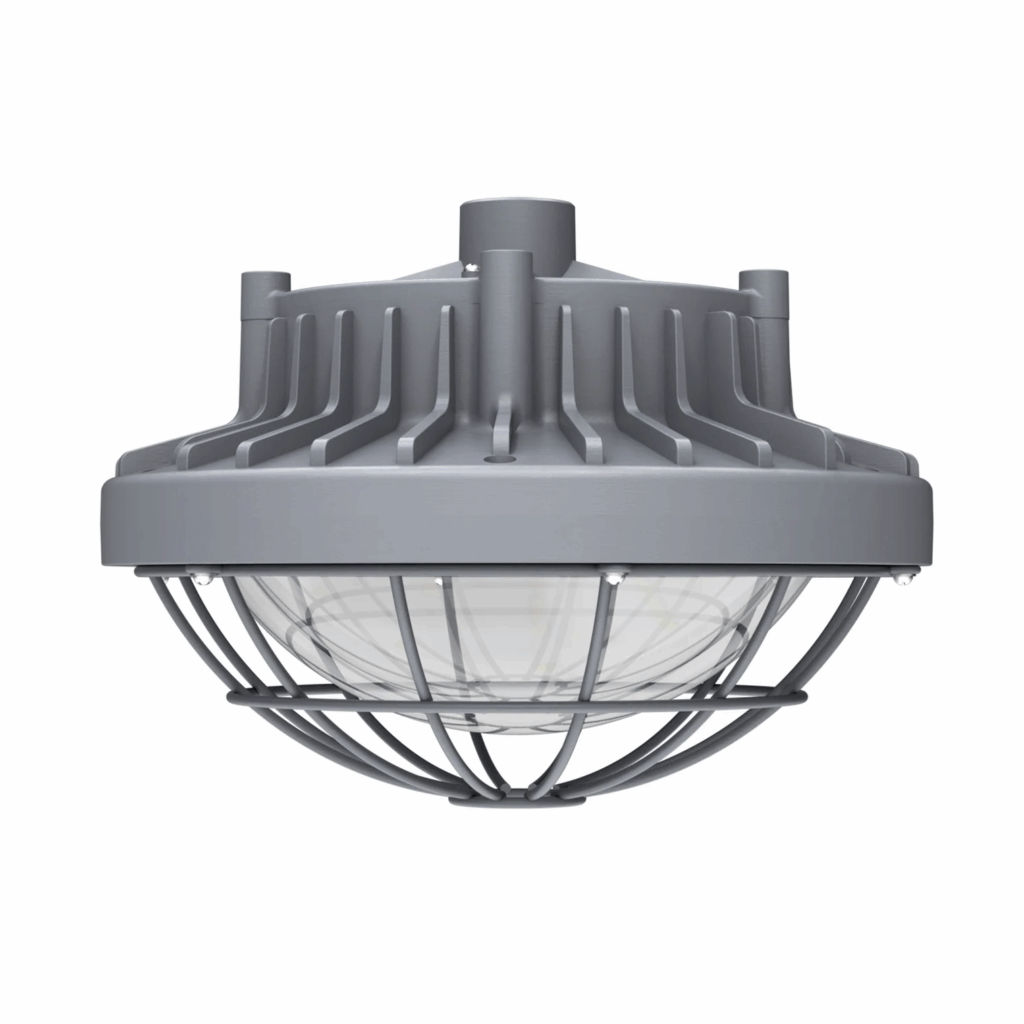

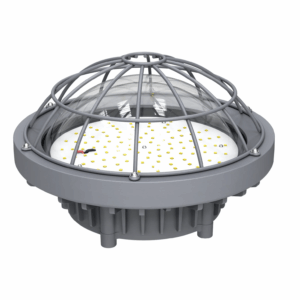

The CEB-80W-120V-50K is a robust 80-watt LED explosion-proof bulkhead light designed for use in hazardous and demanding industrial environments. Emitting a bright 5000K daylight white, it provides exceptional illumination with approximately 10,400 lumens while maintaining safety and energy efficiency. The rugged housing and IP66 weatherproof rating make it ideal for chemical plants, offshore oil rigs, refineries, and manufacturing facilities.

Key Features:

  • Explosion-Proof Certified: Built for Class I Division II hazardous locations

  • High Lumen Output: Approximately 130 lm/W for efficient, bright illumination

  • Rugged Design: Heavy-duty die-cast aluminum housing with corrosion-resistant finish

  • IP66 Protection: Dust-tight and resistant to powerful water jets – suitable for wet and harsh environments

  • Easy Installation: Designed for wall or ceiling mount in industrial settings

  • Long Lifespan: Up to 50,000 hours of reliable performance

  • Applications: Refineries, warehouses, grain silos, marine facilities, and hazardous chemical areas

Product Specifications

Brand
LED
Model Number
LED-10517023
Energy Used
80W
HID Equivalent
250-350WMH/HPS
Line Voltage
120-277V
CRI
>72
Color Temperature (Kelvin)
5000K
Lowest Color Temperature (Kelvin)
5000K
Highest Color Temperature (Kelvin)
5000K
Brightness (Lumens)
10400LM
Average Rated Life (hr)
+50,000
Operating Temperature (°F)
-40 to 122
Bulb Type Supplied
LED
Finish
Corrosion- Resistant
Housing
High Strength Aluminum
Mounting
Ceiling mount /Drop mount/ U bracket mount
Manufacturer Warranty
5 Years
Wet Location
IP66
Dimmable
No
Color Selectable
No
Wattage Selectable
No
DLC Listing
Yes
Length
0.0000
Width
0.0000
Height
0.0000
