X-LHBC115-130-155W40-50KHV-M

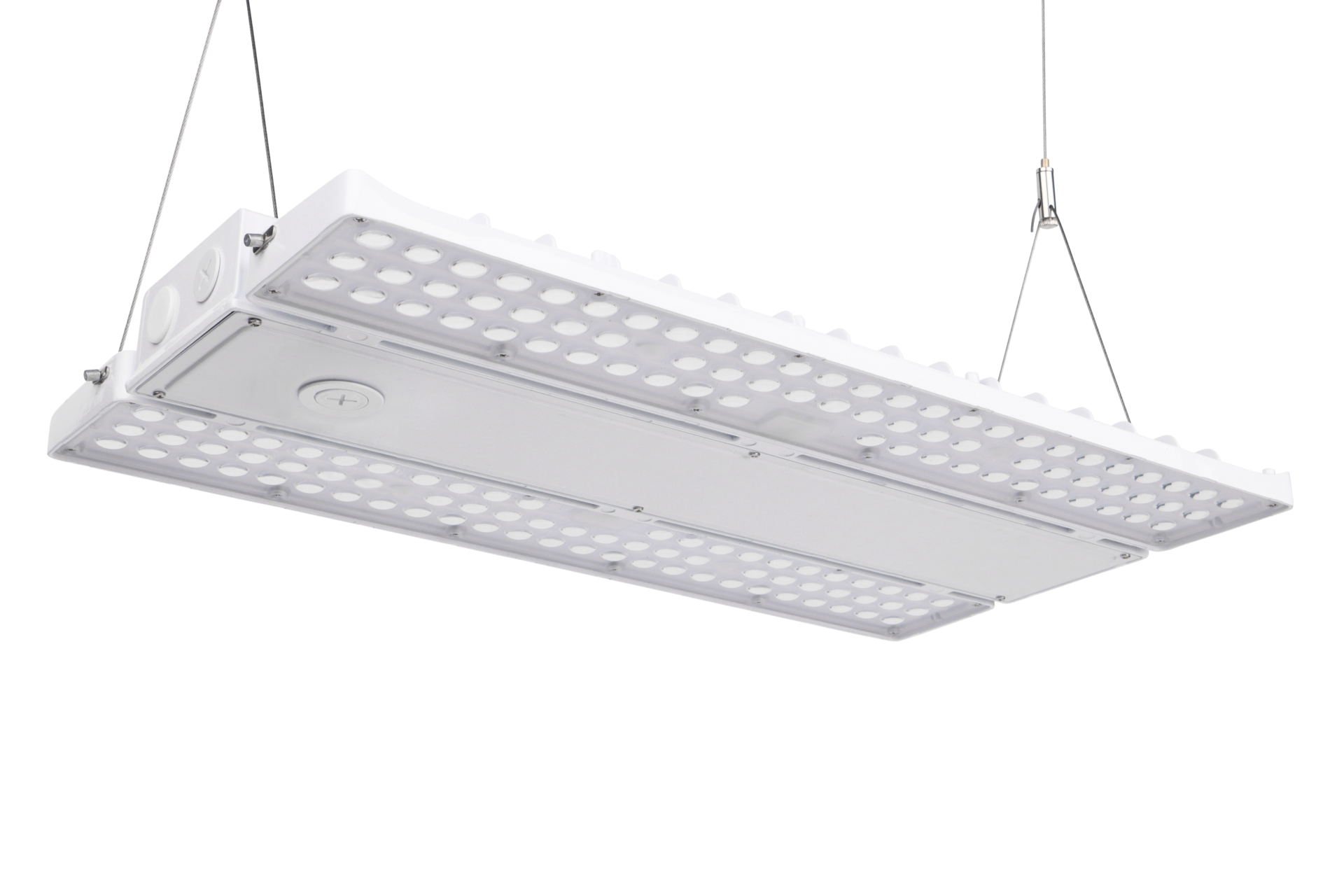

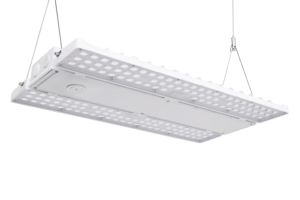

115W / 130W / 155W Selectable LED Linear High Bay

The MESLA X-LHBC115-130-155W40-50KHV-M Selectable LED Linear High Bay delivers efficient, reliable illumination for commercial, industrial, warehouse, storage, and high-ceiling applications.

Designed with a durable die-cast aluminum housing, the LHBC combines a compact, clean appearance with flexible wattage and color temperature selection. With three selectable power levels — 115W, 130W, or 155W — and two selectable color temperatures — 4000K or 5000K — one fixture can be configured to meet a variety of lighting requirements.

At up to 150 lumens per watt, the LHBC provides excellent energy efficiency while delivering the high-output performance required for demanding commercial and industrial spaces.

Key Features

• Selectable Wattage: 115W / 130W / 155W
• Selectable CCT: 4000K / 5000K
• Input Voltage: 277–480V
• Efficiency: Up to 150 LPW
• 0–10V Dimming: Dimmable from 100% down to off
• Die-Cast Aluminum Housing
• White Corrosion-Resistant Powder-Coated Finish
• 6kV L-N / 10kV L/N-PE Surge Protection
• CRI: >80
• UGR: <28
• 5-Year Warranty
• Optional Motion Sensor and Remote Controller
• Optional Zhaga Base
• Optional Emergency Battery Backup
• General Optic and Aisle Optic Lens Options

Electrical Specifications

Wattage: 115W / 130W / 155W selectable
Input Voltage: 277–480V
Frequency: 50/60Hz
Dimming: 0–10V
Efficiency: Up to 150 LPW
Surge Protection: L-N 6kV / L/N-PE 10kV

Optical Specifications

The LHBC uses a high-quality polycarbonate lens with a high-angle cut-off design to provide controlled, comfortable illumination while helping reduce glare.

Color Temperature: 4000K / 5000K selectable
CRI: >80
UGR: <28
Efficiency: Up to 150 LPW
Optics: General Optic or Aisle Optic

Construction

The X-LHBC features a rugged die-cast aluminum housing designed for durability and efficient heat dissipation. The white powder-coated finish provides a clean, professional appearance while helping protect the fixture against corrosion.

Optional Accessories

Customize the X-LHBC to suit your application with:

• Motion Sensor
• Remote Controller
• Zhaga Base
• Emergency Battery Backup
• General Optic Lens
• Aisle Optic Lens

Operating Temperature

-13°F to 122°F (-25°C to 50°C)

Applications

Ideal for a wide range of commercial and industrial environments, including:

• Warehouses
• Distribution Centers
• Storage Facilities
• Manufacturing Facilities
• Industrial Buildings
• Commercial Buildings
• Sports Facilities
• Gyms and Fitness Centers
• Workshops
• High-Ceiling Applications

Efficient. Flexible. Built to Perform.

The MESLA X-LHBC115-130-155W Selectable LED Linear High Bay provides three wattage settings and two color temperature options in one versatile fixture. With up to 150 LPW efficiency, 0–10V dimming, high-voltage 277–480V operation, and optional advanced controls, it is an ideal solution for upgrading traditional high-bay lighting while improving energy efficiency.

115W • 130W • 155W | 4000K • 5000K | 277–480V | Up to 150 LPW

MESLA Lighting — High-Performance LED Solutions for Commercial & Industrial Applications.
