WSD-SB30W48-50K-D-T3
Description

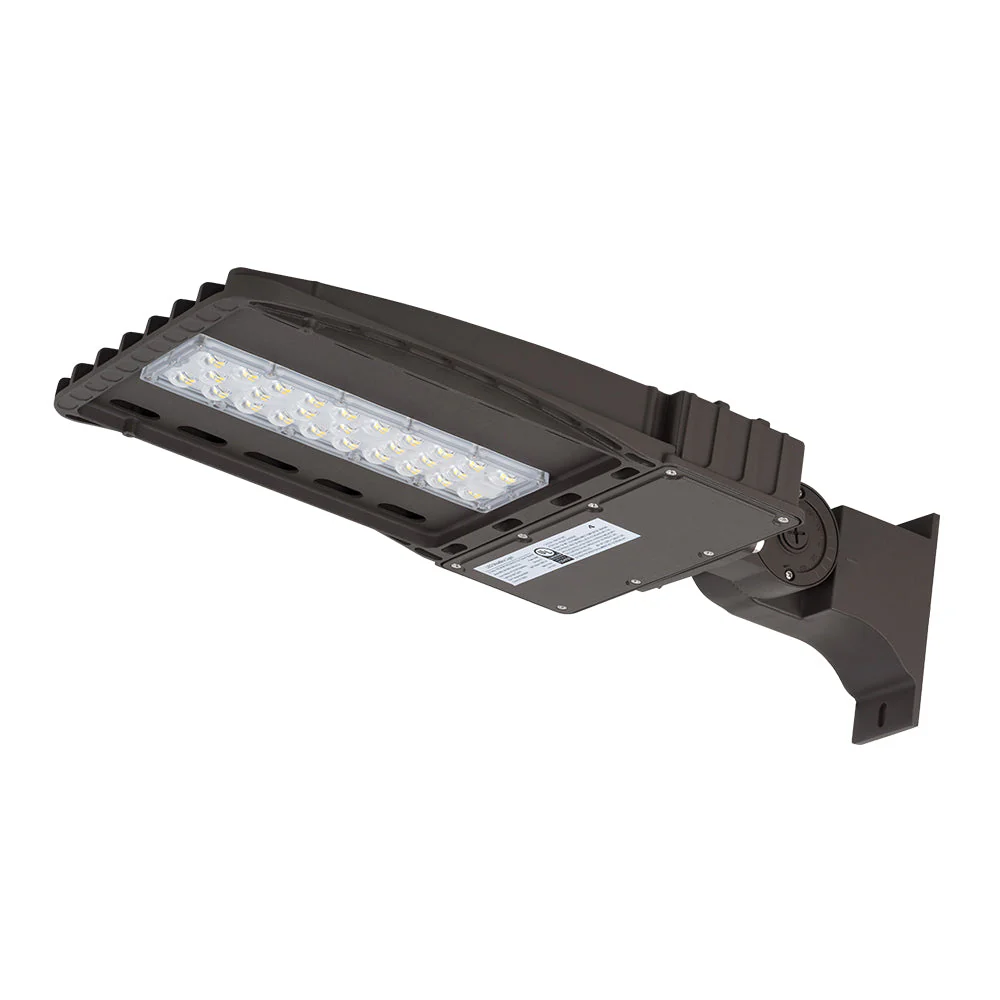

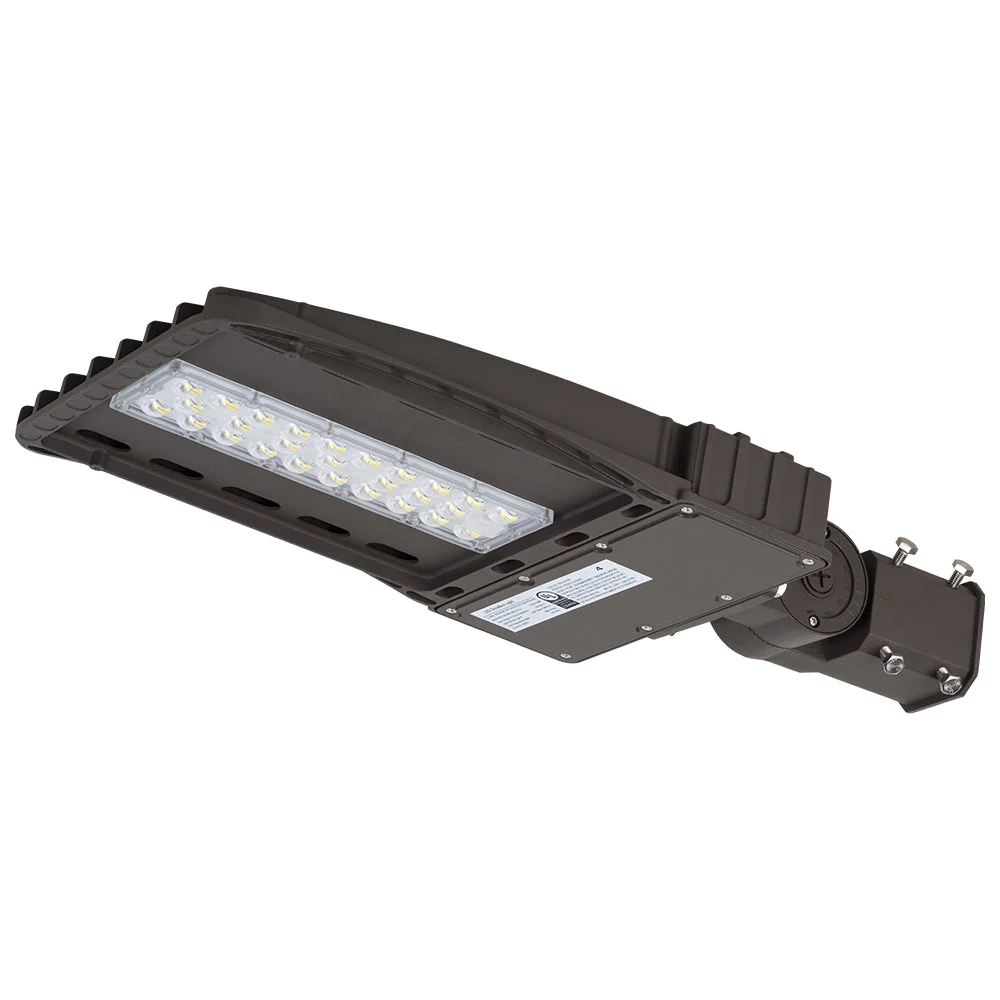

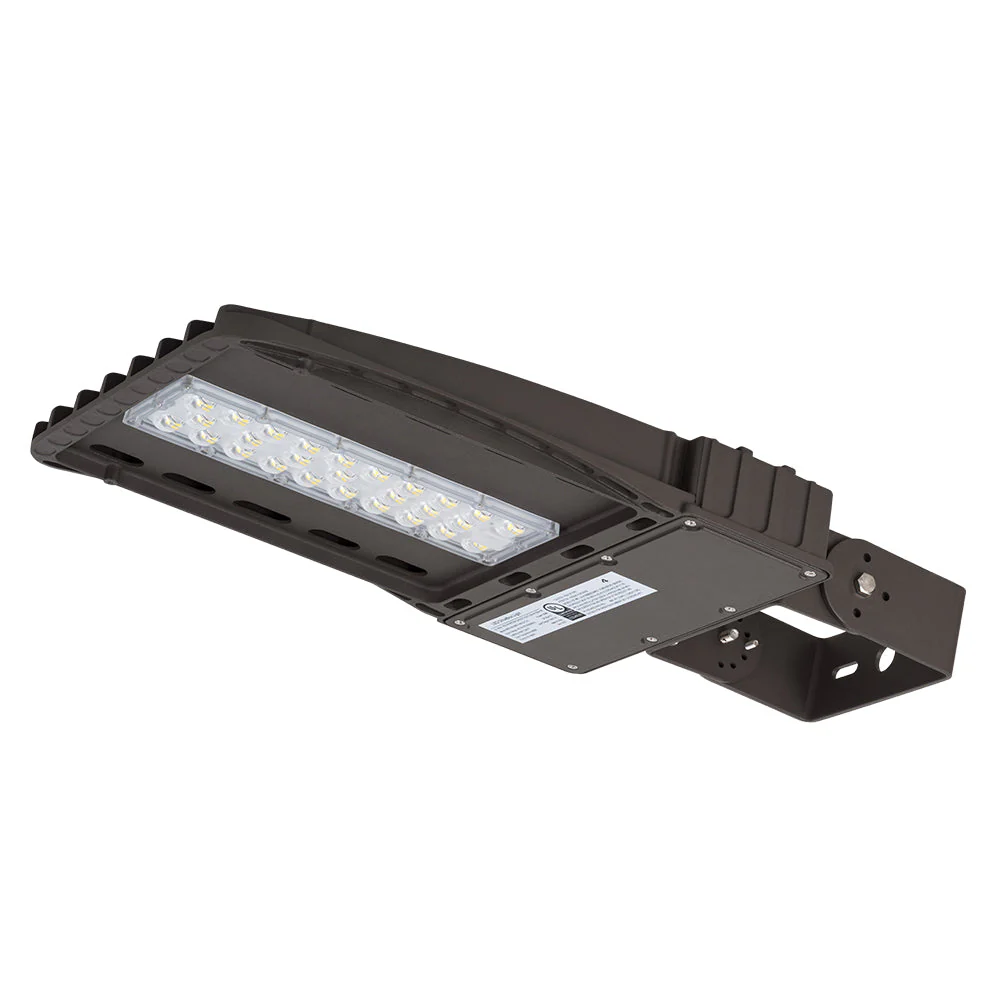

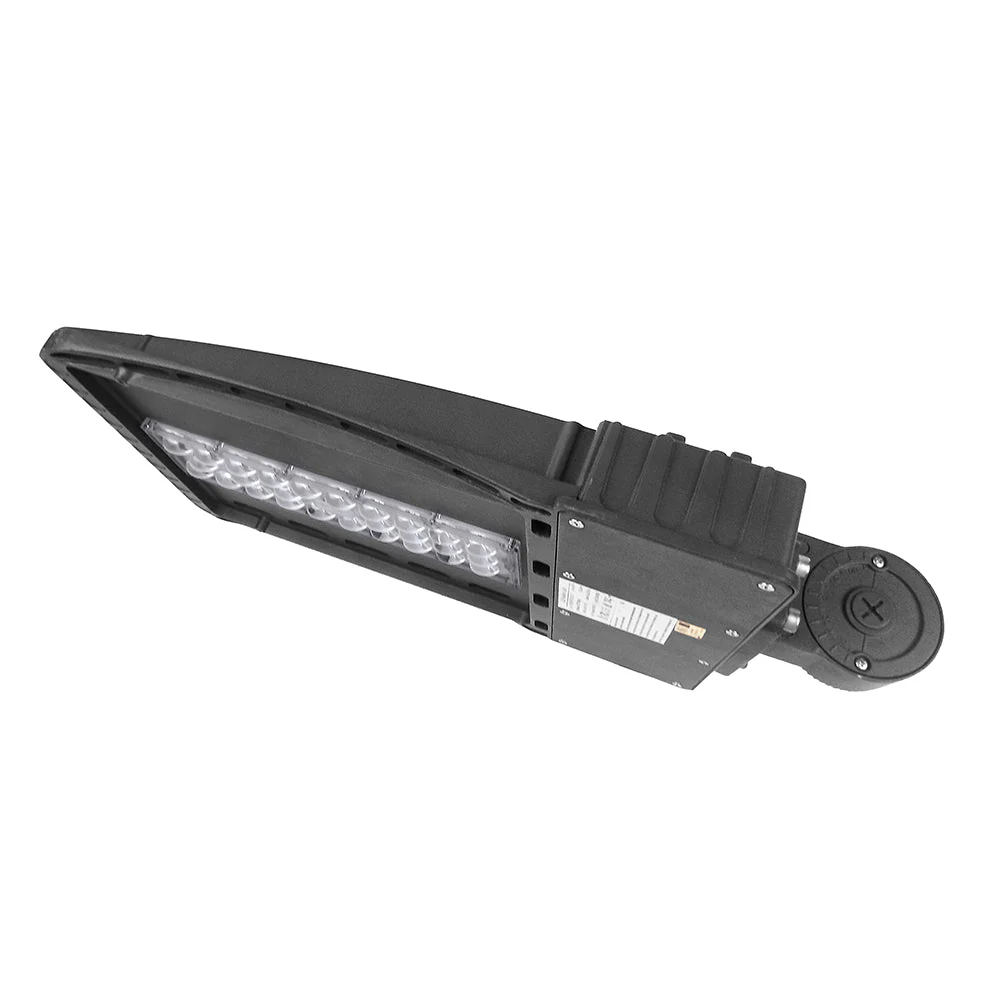

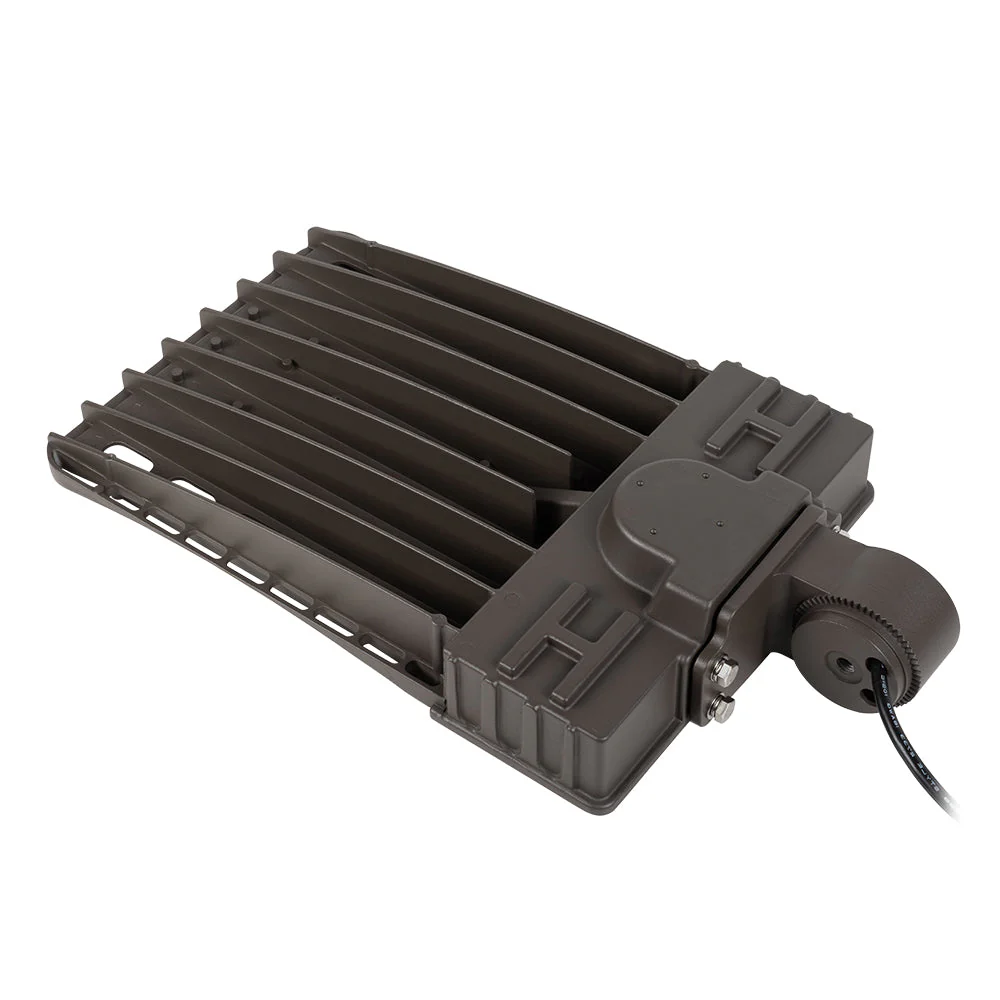

LED Shoebox Area Light
300W | 42,132 Lumens | 5000K | Type III Distribution | 277–480V | BUG B5-U0-G4
Product Overview
The WSD-SB30W48-50K-D-T3 LED Shoebox Area Light is a high-output, commercial-grade outdoor lighting fixture designed for high-voltage applications. Delivering 42,132 lumens at 300 watts, this luminaire provides bright 5000K daylight illumination, enhancing visibility, safety, and security for large outdoor areas.
The WSD LED Shoebox Area Light series is suitable for urban roads, industrial areas, residential neighborhoods, sidewalks, parking lots, schools, gardens, and other expansive outdoor spaces.
Equipped with premium Lumileds LED chips and a high-performance SOSEN POWER driver, this fixture ensures consistent light output, stable operation, and long service life. The Type III (T3) distribution provides broad forward-throw coverage for roadways, parking areas, and perimeter lighting.
With a BUG rating of B5-U0-G4, the fixture delivers strong forward illumination while minimizing uplight for dark-sky-friendly installations.
Installation parts sold separately.
Key Features
High-Output Performance
-
Power: 300W
-
Lumen Output: 42,132 LM
-
Color Temperature: 5000K (Daylight White)
-
Input Voltage: AC 277–480V
-
Light Source: Lumileds
-
Driver: SOSEN POWER
Advanced Optical Distribution
-
Type III (T3) forward-throw distribution
-
BUG Rating: B5-U0-G4
-
Eliminates uplight (U0) for dark-sky compliance
-
Ideal for roadways, parking lots, and large-area illumination
Rugged Outdoor Construction
-
Heavy-duty, weather-resistant housing
-
Long operational lifespan
-
Reduces maintenance and replacement costs
Benefits
✔ Extremely high lumen output for large-area coverage
✔ Energy-efficient LED replacement for high-wattage HID fixtures
✔ Enhanced visibility and safety for commercial and municipal areas
✔ Reliable performance with premium LED chips and SOSEN POWER driver
✔ Dark-sky-friendly design with minimal uplight
Ideal Applications
-
Highways & urban roads
-
Large parking lots & garages
-
Industrial parks & facilities
-
Residential developments
-
School campuses
-
Sidewalks & pedestrian pathways
-
Municipal & commercial properties
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | LED Shoebox Area Light |
| Model | WSD-SB30W48-50K-D-T3 |
| Wattage | 300W |
| Input Voltage | AC 277–480V |
| Luminous Output | 42,132 Lumens |
| Color Temperature | 5000K |
| LED Source | Lumileds |
| Driver | SOSEN POWER |
| Distribution | Type III (T3) |
| BUG Rating | B5-U0-G4 |
| Installation | Mounting accessories sold separately |
| Application | Outdoor area & roadway lighting |
Packaging Information
| Parameter | Detail |
|---|---|
| Packing Size | 24 × 19 × 6 inch |
| Weight | 27 lbs |
| Pallet Size | 42 × 48 × 62 inch |
| Quantity per Pallet | 52 pcs |
| Total Pallet Weight | 1,434 lbs |
Summary
The WSD-SB30W48-50K-D-T3 LED Shoebox Area Light delivers high-output, energy-efficient lighting for large-scale outdoor applications. With 42,132 lumens, Type III optics, and a B5-U0-G4 BUG rating, this fixture provides powerful forward illumination while minimizing uplight, making it ideal for highways, parking lots, industrial facilities, and municipal areas requiring dependable, high-performance lighting.
