BH3N4H
Description

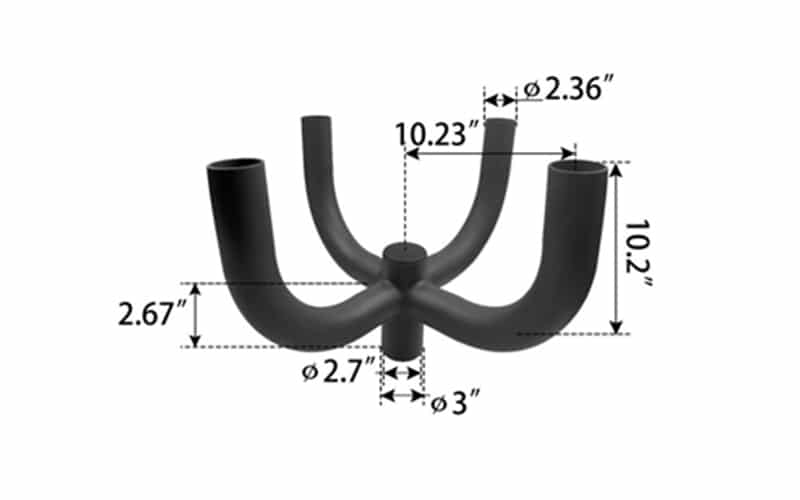

Quad 90° Horizontal Tenon Adapter – Four Heads
Mount Four Fixtures Horizontally in a Cross Configuration for Maximum Coverage
Overview
The BH3N4H Quad 90° Horizontal Tenon Adapter is a precision-engineered mounting accessory designed to support four lighting fixtures on a single pole in a cross configuration at 90° intervals. This adapter provides full-area illumination from a single pole, making it ideal for roadways, parking lots, sports complexes, and large-area lighting applications.
Constructed from heavy-duty, corrosion-resistant steel or aluminum, the BH3N4H delivers long-lasting stability and reliable outdoor performance. Its rugged design is compatible with a wide range of area, flood, and shoebox fixtures, offering versatile mounting options for commercial, municipal, and industrial lighting projects.
Key Features
Quad-Head Cross Design
-
Supports four fixtures mounted at 90° from each other
-
Maximizes light coverage from a single pole
-
Compatible with area lights, floodlights, and shoebox fixtures
Durable Outdoor Construction
-
Heavy-duty steel or aluminum construction
-
Powder-coated, weather-resistant finish for corrosion and UV protection
Quick and Secure Installation
-
Designed for horizontal pole mounting
-
Provides stable support and alignment for multiple fixtures
Benefits
-
Maximized Illumination: Four fixtures in a cross configuration provide wide, even coverage
-
Durable and Weatherproof: Built to withstand harsh outdoor environments
-
Cost-Effective: Reduces the number of poles needed for large-area lighting
-
Flexible Compatibility: Works with a variety of area, flood, and shoebox fixtures
Ideal Applications
-
Parking lots and roadway lighting
-
Large commercial or industrial areas
-
Sports facilities and recreational fields
-
Campus and municipal outdoor lighting projects
Technical Specifications
| Parameter | Detail |
|---|---|
| Product Type | Quad Horizontal Tenon Adapter – Four Heads |
| Pole Compatibility | Standard area lighting poles |
| Fixture Compatibility | Area, flood, and shoebox fixtures |
| Orientation | 90° horizontal cross |
| Material | Heavy-duty steel or aluminum |
| Finish | Powder-coated, weather-resistant |
| Mounting Orientation | Horizontal mounting on pole |
| Packaging | Sold individually or in cartons |
| Application | Outdoor multi-fixture lighting systems |
Summary
The BH3N4H Quad 90° Horizontal Tenon Adapter provides a strong, versatile solution for mounting four fixtures in a cross configuration on a single pole. Its heavy-duty construction, weather-resistant finish, and efficient design make it ideal for maximizing illumination in commercial, municipal, and industrial outdoor lighting applications.
