8C-17/24/30W-XXK
Description

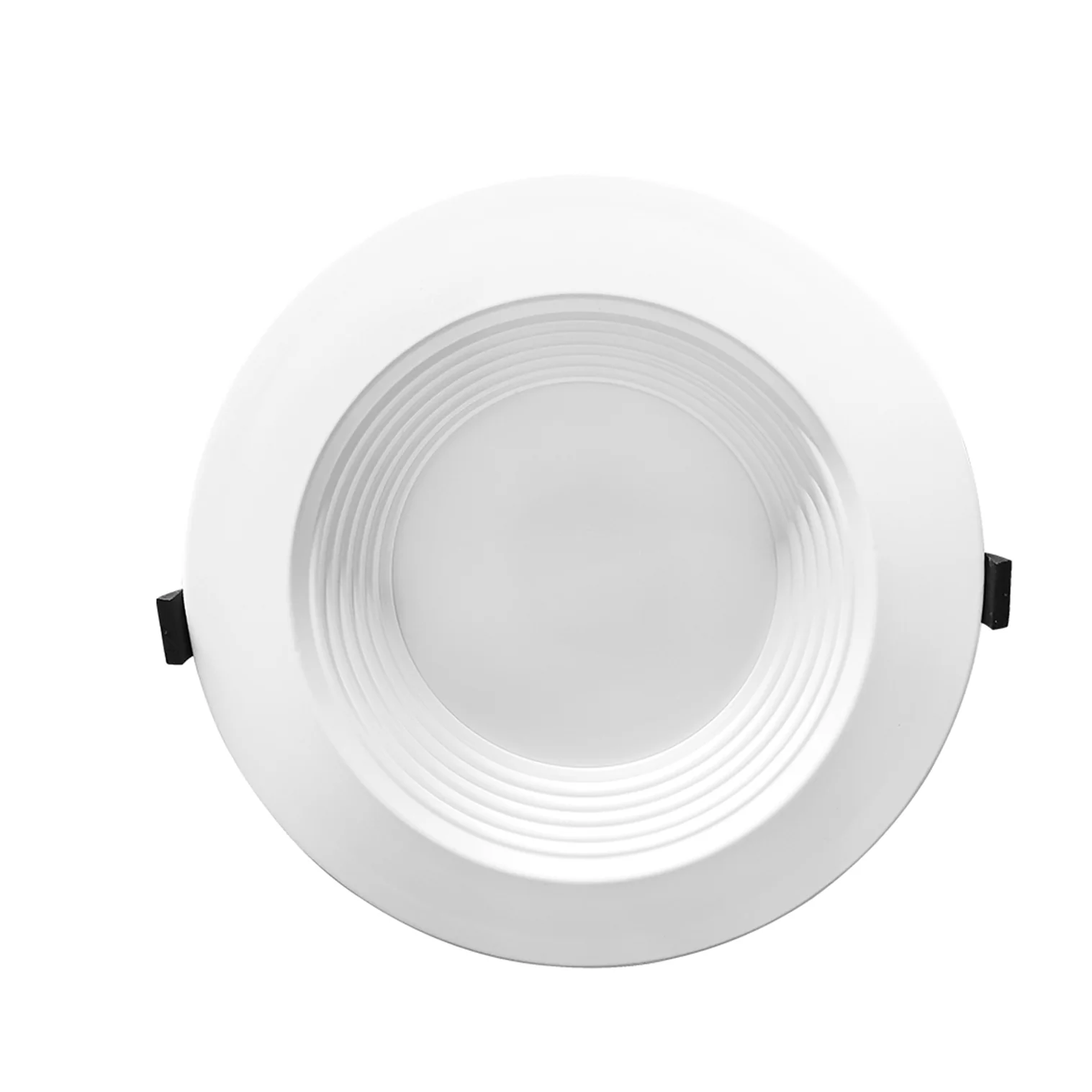

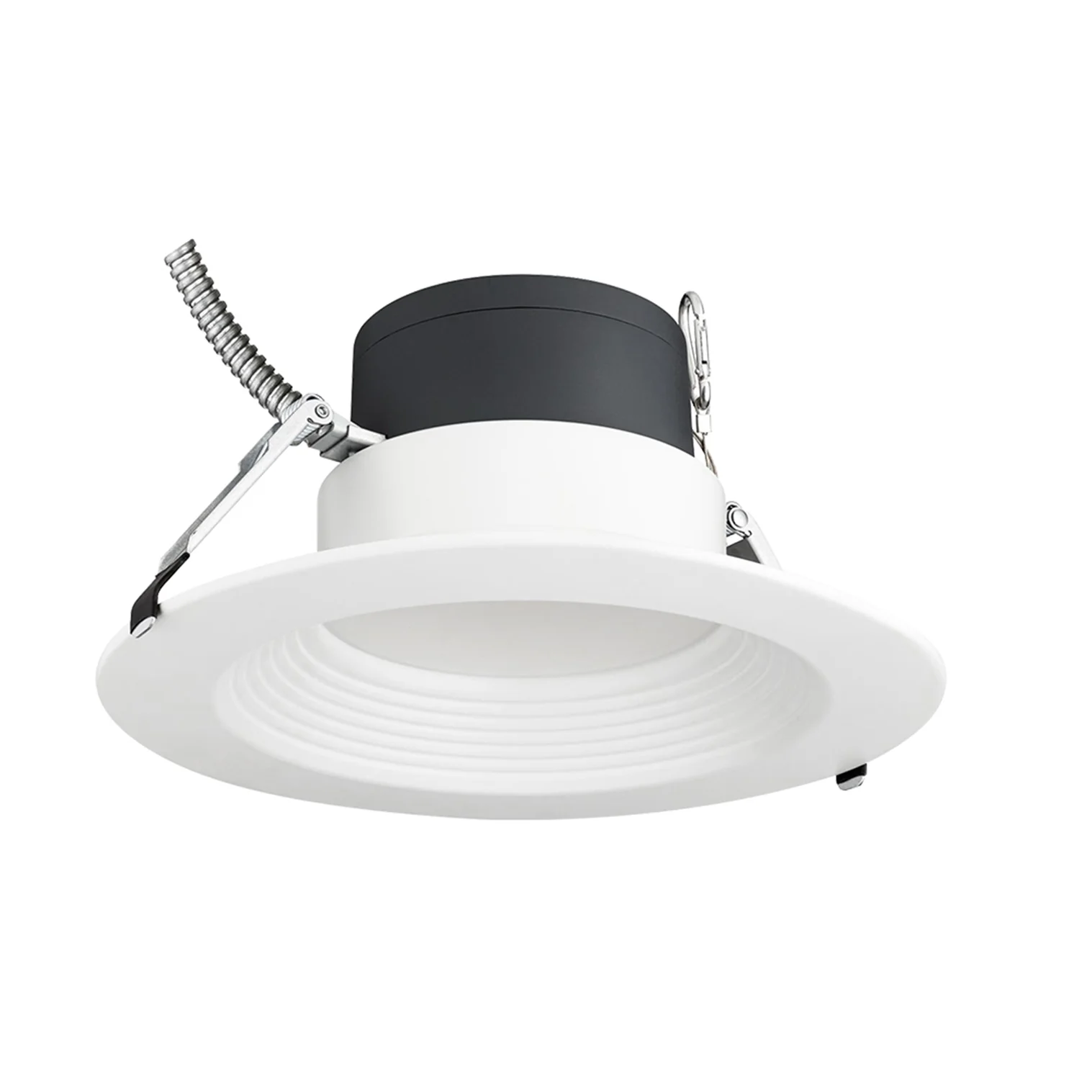

8” Commercial LED Downlight with Baffle Trim
Field-Selectable Wattage & Color Temperature for Flexible Commercial Installations
Overview
The 8C-17/24/30W-XXK 8” Commercial LED Downlight is a high-performance recessed lighting fixture designed for versatility, energy efficiency, and easy installation in commercial and institutional environments. With field-selectable wattages of 17W, 24W, or 30W, and color temperature options ranging from 3000K to 5000K (model-dependent), this downlight adapts to a wide variety of ceiling heights and lighting preferences — all in a single SKU.
Equipped with a baffle trim for glare reduction and visual comfort, the fixture is ideal for offices, lobbies, corridors, schools, hospitals, and retail spaces. Designed for quick retrofit or new construction applications, it delivers consistent, high-quality light output with reduced power consumption.
Key Features

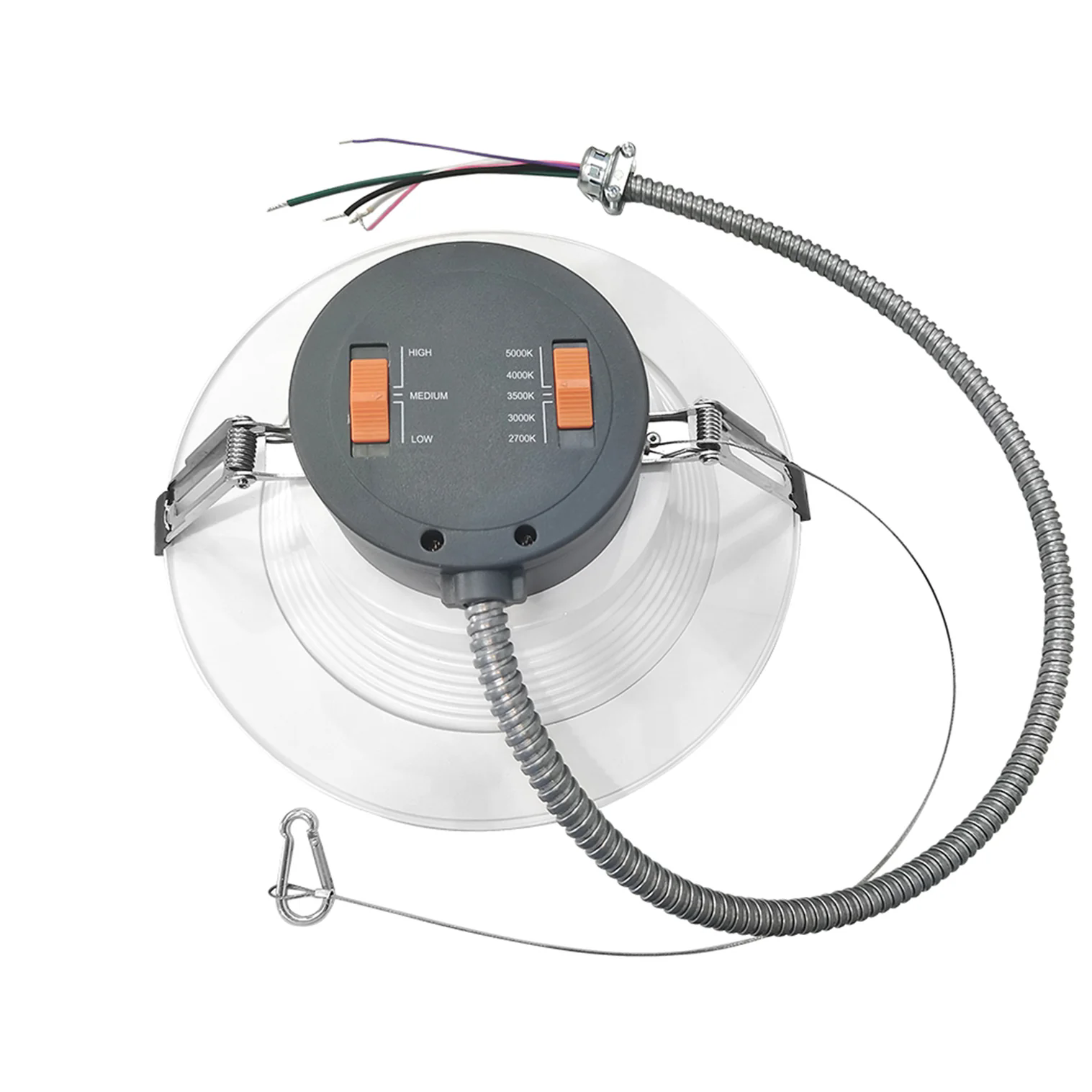

Field-Selectable Wattage
-
Easily switch between 17W, 24W, or 30W
-
Adjust lumen output on-site to meet specific application needs
-
Reduces inventory by combining three wattages into one product
CCT Options (Model Dependent)
-
Available in 3000K / 4000K / 5000K to suit various ambiance and performance needs
-
Selectable or fixed CCT depending on model (verify "XXK" configuration)
High Lumen Efficacy
-
Delivers efficient, uniform light output across wattage levels
-
Ideal for high ceilings and large commercial spaces
Baffle Trim Design
-
Integrated baffle trim minimizes glare and enhances visual comfort
-
Clean, professional appearance suitable for open ceilings
Easy Installation
-
Compatible with most 8” commercial housings
-
Can be used in retrofit and new construction applications
-
Quick-connect wiring and spring clips for secure mounting
Benefits
-
Flexible Performance: Adjustable wattage allows one product to serve multiple light level requirements
-
Customizable Lighting: Color temperature options to match design intent or code compliance
-
Low Glare Design: Baffle trim enhances occupant comfort in offices, lobbies, and classrooms
-
Simplified Stocking: One model covers multiple use cases, saving inventory space
-
Energy Efficient: Reduced power consumption with high lumen output and long lifespan
Ideal Applications
-
Office buildings and conference rooms
-
Educational institutions and classrooms
-
Hospitals and healthcare facilities
-
Retail stores and shopping centers
-
Hotels, lobbies, and public buildings
-
Corridors and large commercial interiors
Technical Specifications
| Parameter | Detail |
|---|---|
| Fixture Type | 8” Commercial LED Downlight |
| Wattage Selectable | 17W / 24W / 30W |
| Color Temperature Options | 3000K / 4000K / 5000K (Model Dependent) |
| Trim Type | Baffle Trim |
| Mounting | Retrofit or new construction |
| Voltage | 120–277V (standard for commercial fixtures) |
| Dimming | 0-10V dimming compatible (if applicable) |
| Lumen Output | Varies by wattage (typically 120–140 lm/W) |
| Housing Compatibility | Fits most standard 8” commercial cans |
| Application Type | Commercial and institutional indoor lighting |
Summary
The 8C-17/24/30W-XXK 8” Commercial LED Downlight with Baffle Trim offers unmatched flexibility and performance for commercial lighting needs. Its field-selectable wattage, optional color temperature configurations, and low-glare baffle design make it ideal for a wide range of professional environments. Whether you're upgrading outdated CFL or HID downlights or outfitting a new construction project, this fixture delivers reliability, efficiency, and visual comfort — all in one convenient package.
